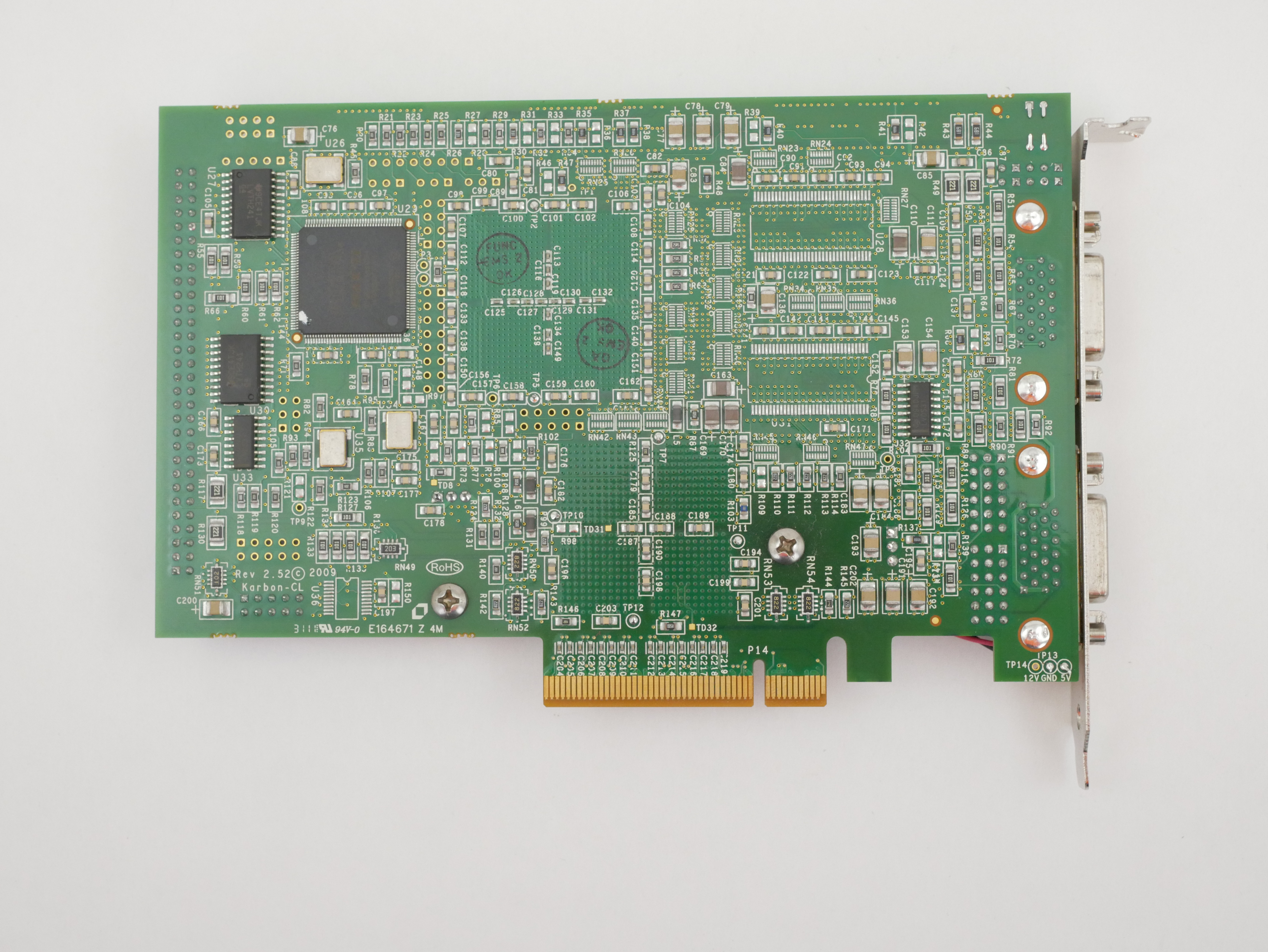

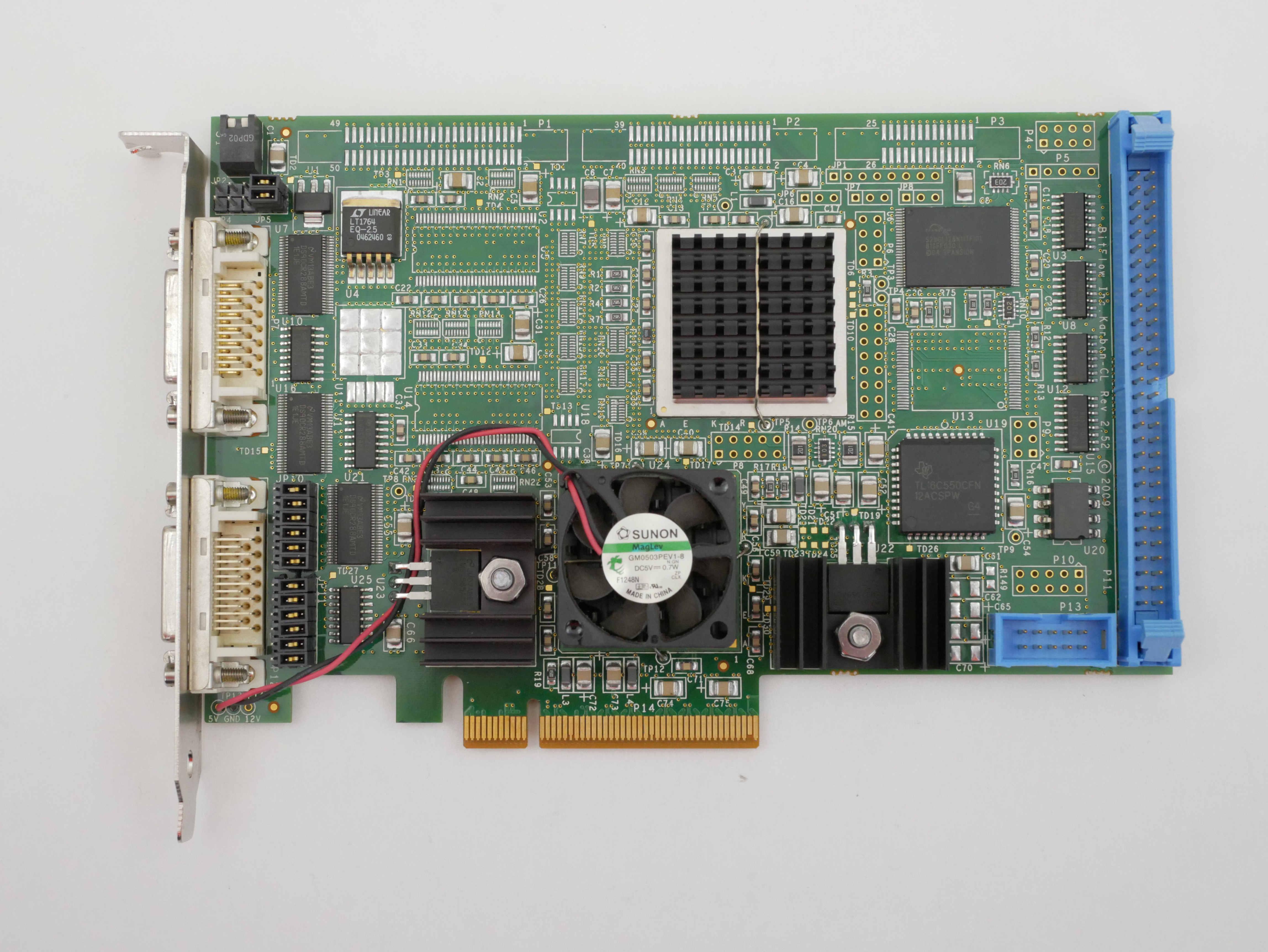

Bitflow Karbon CL2-D Frame Grabber PCI-E x8 KBN-CL2-2.7-2701-D

Bitflow Karbon CL2-D Frame Grabber PCI-E x8 KBN-CL2-2.7-2701-D

Condition Refurbished

Compeve SKU 581700100113

Specifications

Half-Size x8 PCI Express Board

Up to 128 bits input at 85 MHz

Acquire from four independent Base CL cameras

Acquire from two independent Medium/Full CL cameras

Acquire from two 10-tap CL cameras

FlowThru technology eliminates the need for on-board frame buffers, even with the fastest cameras

Hardware Bayer matrix decoding (optional)

Multi-tap cameras rasterized on the fly

Highly configurable acquisition engine

DMA at burst rates up to 2.0 GB/S

Supports images up to 256K x 128K

No frame rate limit

Quadrature encoder support including sophisticated triggering schemes

Encoder divider/multiplier

On board timing generator supports high-resolution exposure control

Independent trigger and encoder inputs for each camera

Independent CCs outputs for each camera

General purpose I/O

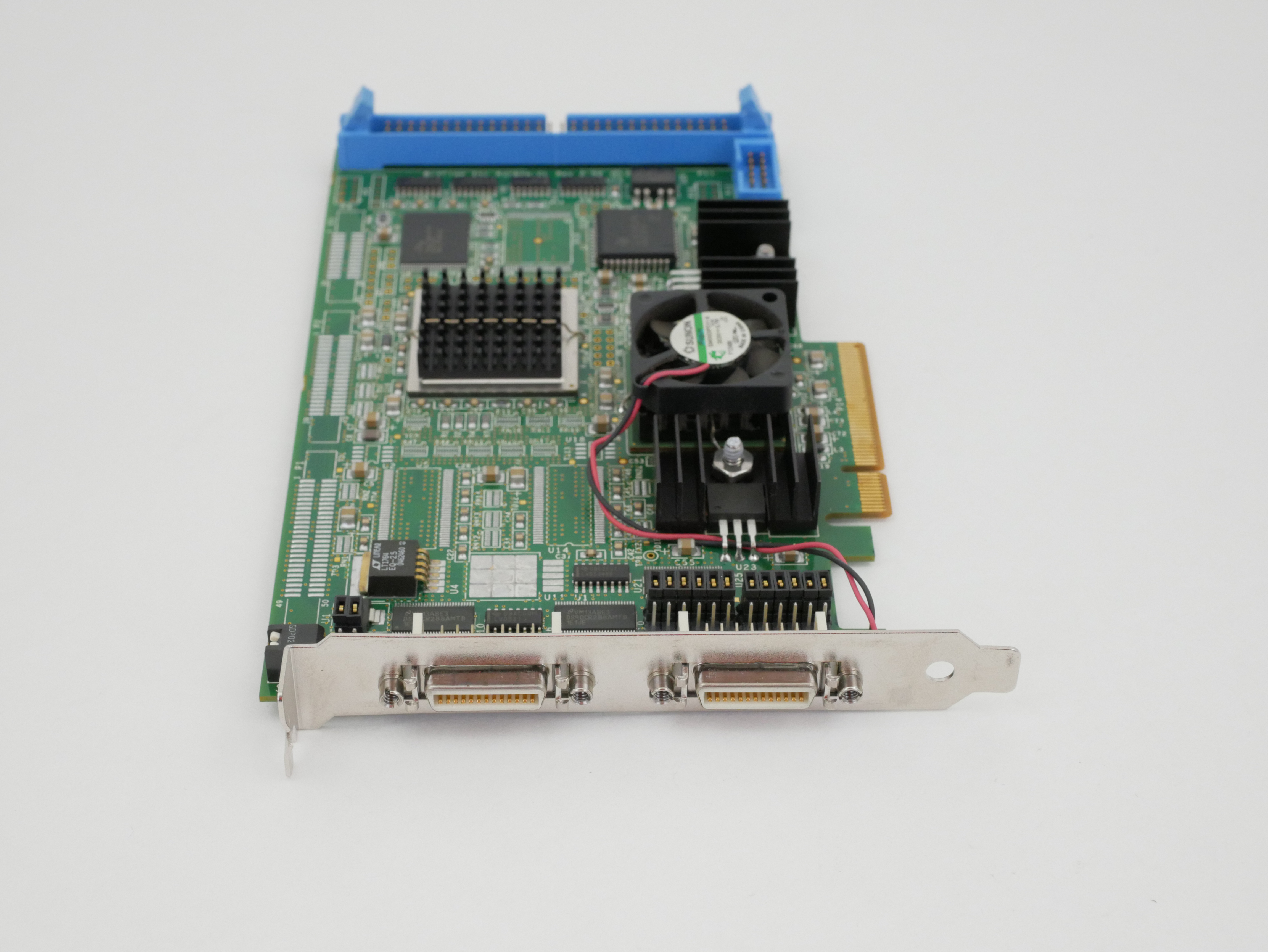

MDR Camera Link connectors

Appears to software as four independently programmable frame grabbers

Supported by the BitFlow SDK on 32 and 64-bit Windows

Acquire image sequences well beyond the 4 GB barrier

Drivers, utilities and examples for Windows XP/2003/Vista/Windows 7

RoHS Complaint
